Meiji Indonesia Food Manufacturing Facility with 1000KVA Voltage Stabilizer System
Introduction
This project introduces the 1000KVA industrial voltage stabilizer provided by Winzele for the Meiji Indonesia food manufacturing facility. After the production base expanded and new equipment was put into operation, the original power supply system showed voltage variation during different production periods. Through on-site assessment by the local installation contractor, a 1000KVA voltage stabilization solution was confirmed, using a series-connected voltage stabilizer integrated into the existing power supply line to provide a stable voltage environment for production equipment.
As an application of a factory voltage stabilizer at an overseas food manufacturing base, the capacity requirement was specified by the Japanese customer, and the local installation contractor completed the power supply condition assessment at the Karawang site and assisted in equipment installation and commissioning.
Project Overview
| Item | Description |
|---|---|
| Project Nature | Overseas factory power stabilization retrofit project |
| Application Type | Factory Main Power Voltage Stabilization |
| Customer Type | Japanese manufacturing enterprise |
| Industry | Food Manufacturing |
| Project Location | Karawang, West Java, Indonesia |
| Installation Date | May 2026 |
| Equipment Capacity | 1000KVA |
| Power Supply Voltage | 380V |
| Installation Method | Series connection into the existing power supply line |
| Wiring Structure | Top Entry / Top Exit |
| Electrical Configuration | IEC-based Electrical Configuration |
How Was the 1000KVA Voltage Stabilizer Capacity Determined?
The 1000KVA voltage stabilizer capacity was specified based on the customer’s project requirements and confirmed through site assessment conducted by the local installation contractor, considering the existing power system and production load conditions.
Capacity determination process:
Customer Project Requirements ↓ Local Installation Contractor Site Assessment ↓ Existing Power System Evaluation ↓ 1000KVA Solution Confirmation
The capacity solution is based on actual project requirements and on-site conditions.
Power Challenge
All-Day Voltage Fluctuation After Expansion
The original power supply system was designed for the early production requirements. After expansion, new production equipment and automated machinery were added, increasing load differences across different time periods:
- Daytime production periods: After equipment is in operation, current demand increases and input voltage drops;
- Nighttime periods: Production load decreases and voltage rises.
The daytime drop and nighttime rise create all-day input voltage fluctuation, affecting the operation stability of production equipment and automated equipment.
This is a common voltage problem after factory expansion. Similar voltage fluctuation problems are common in expanded manufacturing facilities, continuous production factories and automated production lines.
Solution Provided
1000KVA Series-connected Voltage Stabilization System
Winzele adopted a series-connected voltage stabilization solution, integrating a 1000KVA industrial voltage stabilizer into the existing power supply system without replacing the original electrical infrastructure.
- The original line was disconnected;
- The stabilizer was connected in series;
- The stabilized output is maintained at 380V, supplying production equipment.
Without replacing the original grid structure, the stabilization system improves the production power supply environment and increases voltage consistency under different production conditions. The on-site requirement is that the stabilized output is maintained at 380V, meeting the operating requirements of production equipment.
Power System Configuration
This section explains how the stabilization equipment is connected into the on-site electrical system:
| Configuration Item | Value |
|---|---|
| Connection Method | Series connection into the existing power supply line |
| Wiring Structure | Top Entry / Top Exit |
| Installation Location | Existing distribution room, adapted to on-site layout |
The stabilizer is connected into the existing power supply line, and the stabilized output supplies production equipment; the incoming cable enters from the top of the cabinet and the output cable exits from the top, adapted to the on-site distribution room layout.
Manufacturing, Installation and Commissioning Records
1. Factory Manufacturing and Delivery

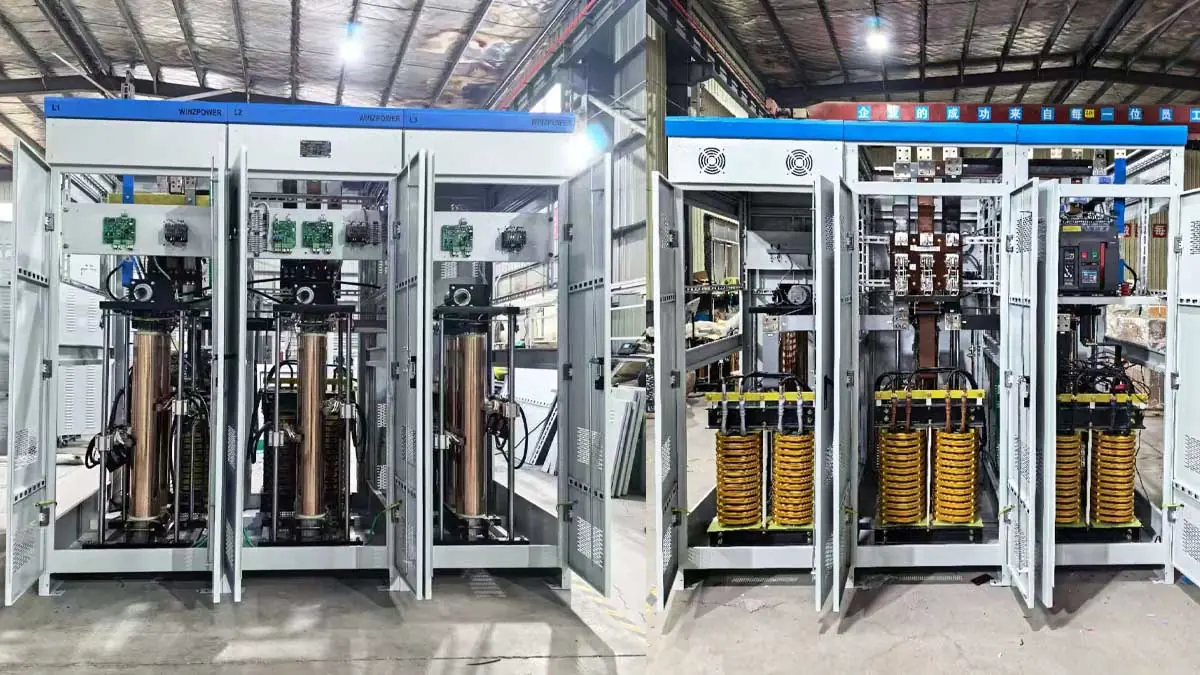

1000KVA Industrial Voltage Stabilizer Manufacturing and Factory Inspection
The 1000KVA voltage stabilizer was manufactured and inspected before overseas shipment.

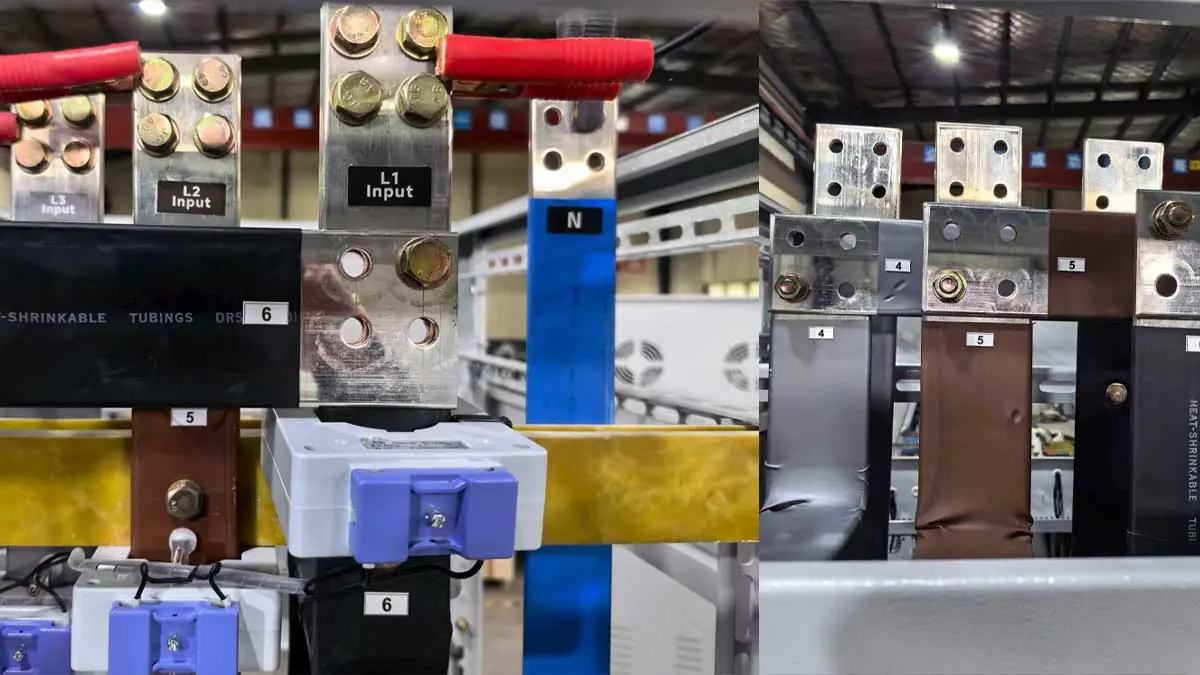

Internal Copper Busbar Structure of 1000KVA Voltage Stabilizer
Internal copper busbar structure designed for high-current industrial power applications.
2. Overseas Installation

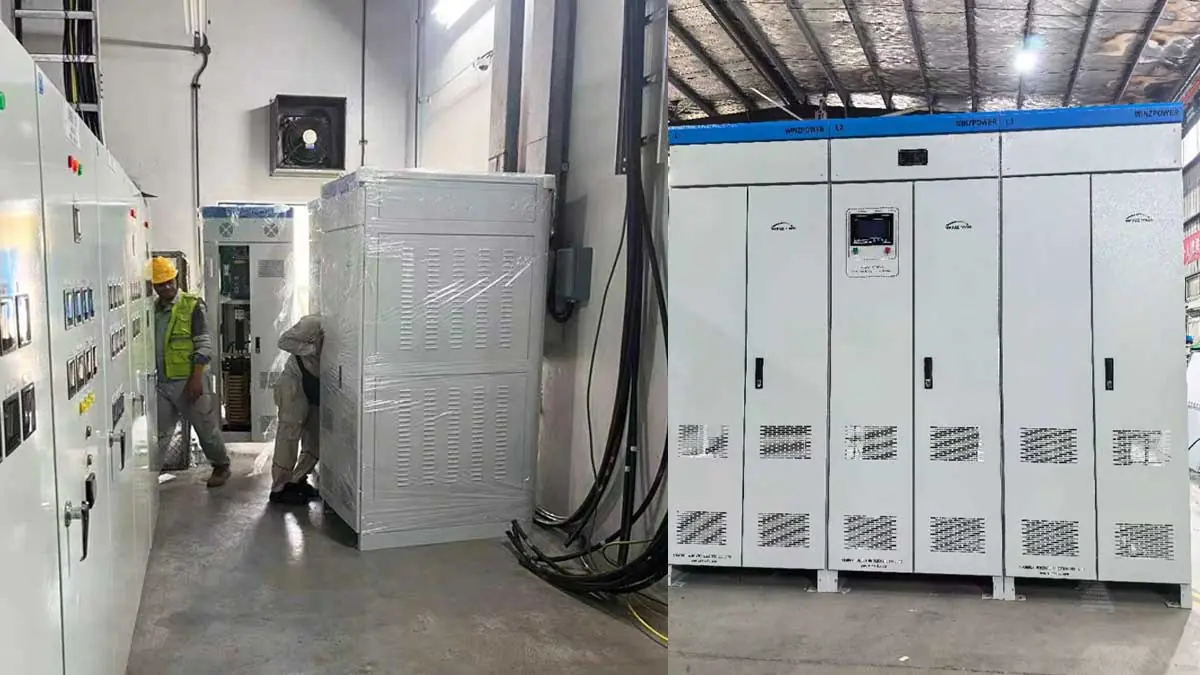

1000KVA Voltage Stabilizer Delivered and Positioned at Meiji Indonesia Factory
The equipment was delivered to Meiji Indonesia food manufacturing facility and positioned in the designated installation area.

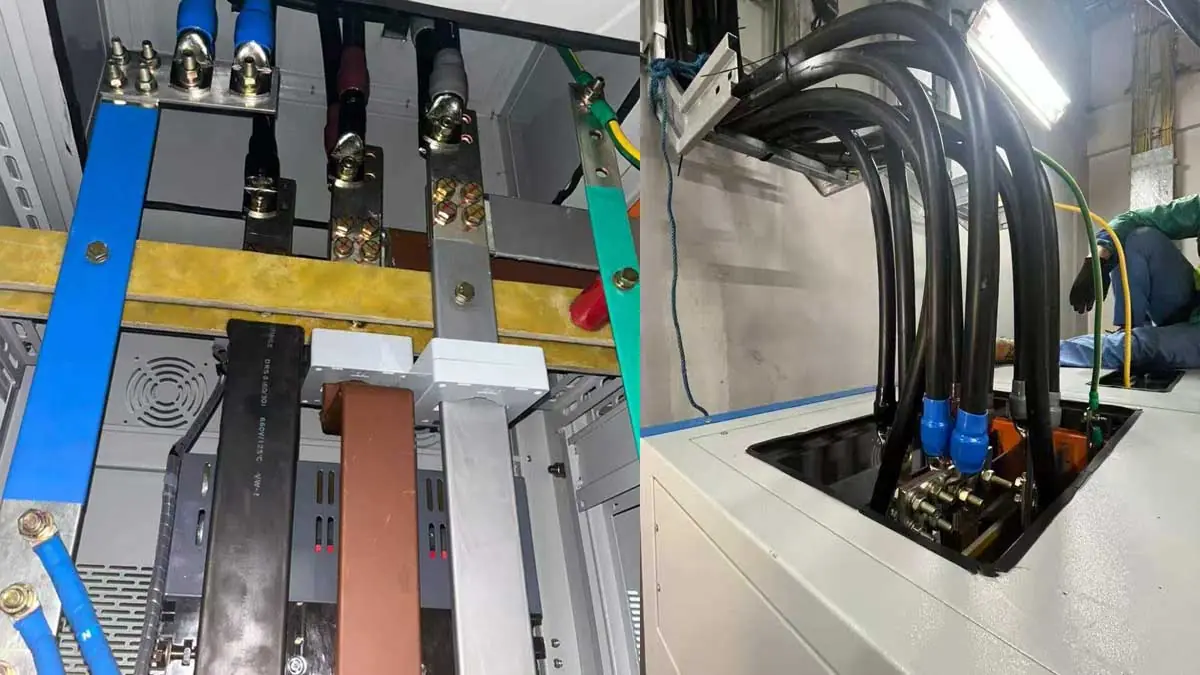

Top Entry and Top Exit Cable Connection of 1000KVA Voltage Stabilizer
The voltage stabilizer was connected to the existing power system using the customized top entry and top exit cable arrangement.
3. Electrical Connection Details

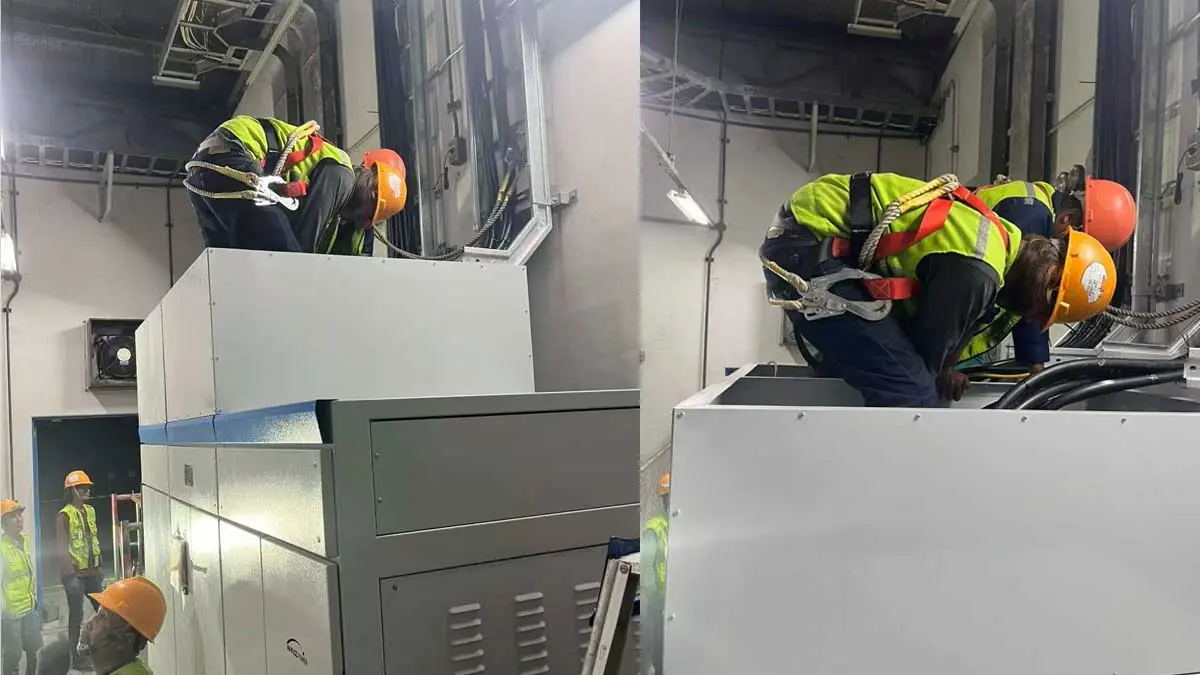

High Current Cable Connection of 1000KVA Voltage Stabilizer
The high-current cable connection was completed according to the site electrical installation requirements, achieving industrial power connection and on-site system integration.
4. Commissioning Verification

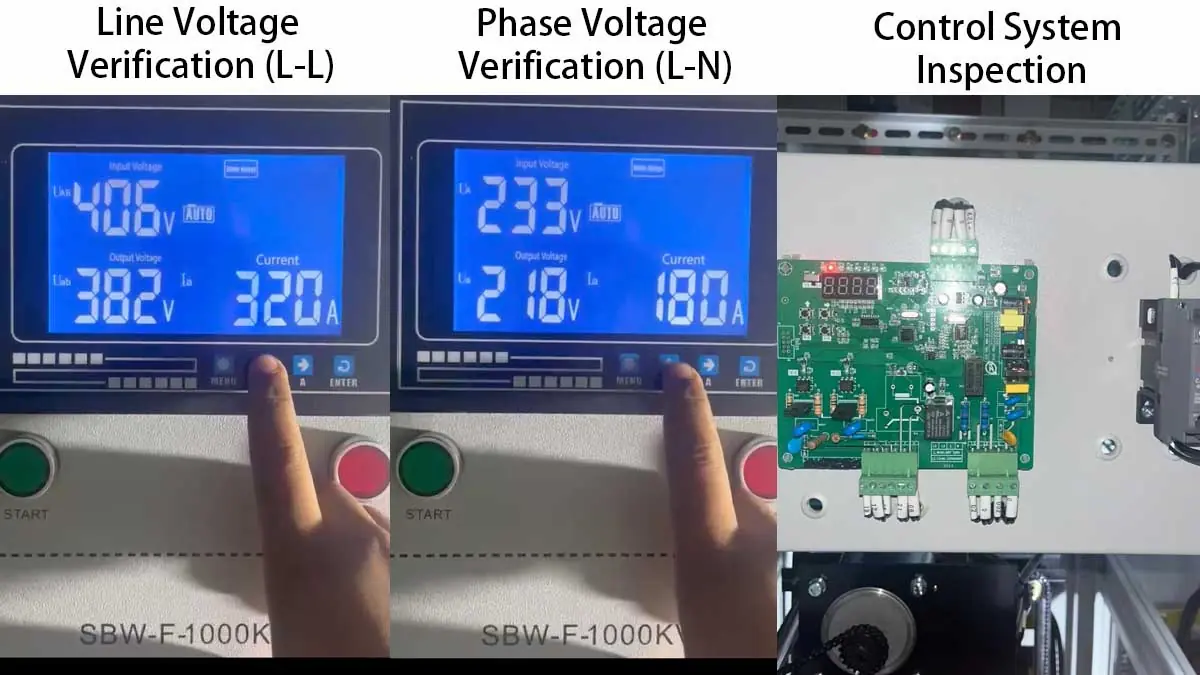

Voltage Output Verification and Control System Inspection During Commissioning
Line voltage, phase voltage and control system functions were verified during commissioning, confirming the actual operating status of the equipment.
Customized Cable Entry Arrangement
According to the layout requirements of the Indonesia on-site distribution room, this project adopts a Top Entry / Top Exit wiring arrangement:
- The incoming cable enters from the top of the cabinet (Top Entry);
- The output cable exits from the top (Top Exit);
- Adapted to the existing power distribution system layout.
This structure is customized according to the on-site distribution room cable routing and the existing distribution layout, facilitating installation and wiring in the existing distribution environment.
IEC-based Electrical Configuration
The electrical configuration was completed according to overseas installation requirements, using IEC cable color identification (IEC international cable identification standard):
| Conductor | Color | Function |
|---|---|---|
| L1 | Brown | Phase 1 |
| L2 | Black | Phase 2 |
| L3 | Gray | Phase 3 |
| N | Blue | Neutral |
| PE | Yellow-Green | Protective Earth |
The electrical configuration meets overseas installation and acceptance requirements, and on-site wiring is identified and connected according to IEC standard color marking.
Engineering Highlights
| Highlight | Value |
|---|---|
| Japanese enterprise overseas production base | Reflecting international manufacturing project experience |
| Power stabilization retrofit after expansion | Addressing voltage variation caused by new loads |
| Local installation contractor site assessment | Capacity solution confirmed based on on-site conditions |
| Series connection method | No change required to the original power supply structure |
| Winzele industrial voltage stabilizer manufacturer | Complete process from manufacturing, delivery, installation to commissioning |
The project site is located in the Karawang International Industrial City (KIIC), and the production base mainly produces food products such as Hello Panda, Yan Yan and Lucky Stick. The retrofit addressed the customer’s post-expansion power supply requirements: the capacity solution was proposed by the customer and confirmed by local installation contractor site assessment; the equipment was connected in series, completing the power supply stabilization retrofit without replacing the original grid.
Technical Focus
| Technical Item | Description |
|---|---|
| Capacity determination | Customer requirements + local installation contractor site assessment |
| Voltage level | Stabilized output 380V (on-site requirement) |
| System integration | Series connection into the existing power supply system |
| Installation adaptation | Top Entry / Top Exit meeting on-site layout |
| Overseas configuration | IEC international electrical identification standard |
| Application scenario | Continuous production environment of food manufacturing after expansion |
FAQ
Q: Why does the factory experience different voltage levels during day and night after expansion? A: The original power supply system was designed for early production requirements. After expansion, new production equipment and automation loads were added. During daytime operation, current demand increases and input voltage drops; at night, production load decreases and voltage rises, creating all-day input voltage fluctuation.
Q: What does series connection mean? A: Series connection means connecting the stabilizer into the existing power supply line: the original line is disconnected and the stabilizer is connected in, and the stabilized output then supplies production equipment. This improves the power supply environment without replacing the grid.
Q: Why was a 1000KVA stabilizer selected? A: The capacity for this project was proposed by the customer and confirmed through local installation contractor site assessment, based on the production base’s power supply system and load conditions.
Q: How to select the right voltage stabilizer capacity for a factory? A: Industrial voltage stabilizer capacity generally needs to be determined considering transformer capacity, production load characteristics, starting current, on-site voltage conditions and power distribution system structure. The 1000KVA capacity in this project was proposed by the customer and confirmed through local installation contractor site assessment. A food manufacturing voltage stabilizer selection also needs to combine production load characteristics and on-site power supply conditions.
Q: Is this project applicable to overseas food manufacturing factories? A: Similar solutions apply to industrial scenarios that need improved voltage stability, such as expanded manufacturing bases, food processing plants and continuous production factories.
