DC Power Suppy
Input AC voltage range:
3 phase 380V/400V(AC)（>10KW）
1 phase 220V/230V(AC)（≤10KW）
Output DC voltage: 5-5000V
Output DC current: 5-50000A
MOQ: 1 Set/Piece

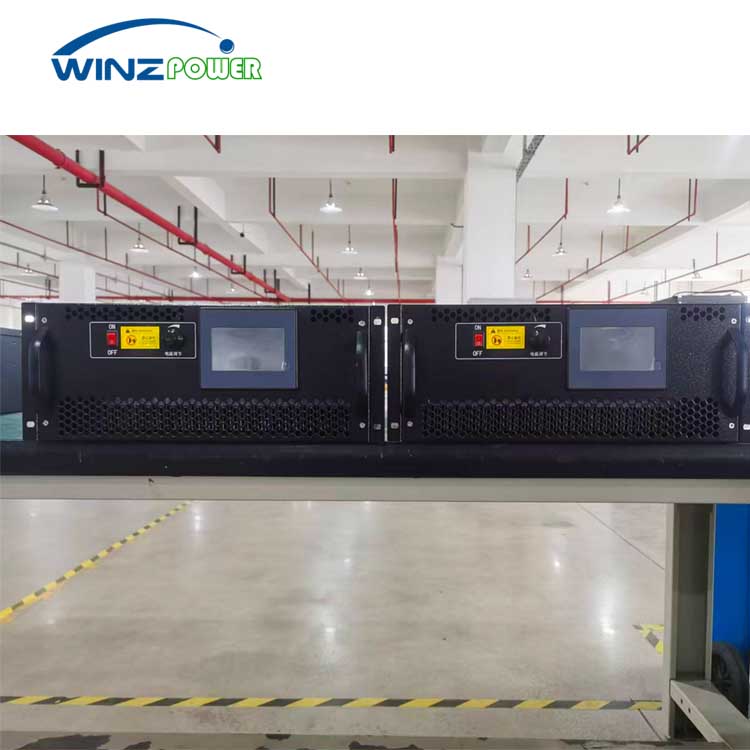

Product Introduction
DPW high-frequency isolated DC power supply is a high-efficiency DC constant voltage, constant current and constant power power supply that uses a new generation ARM 32-bit processor as the main control chip, PWM pulse width modulation, IGBT as the main power regulation control element, medium and high frequency transformers for input and output isolation, and fast recovery diodes as rectification units.
Working principle
DPW high-frequency isolated DC power supply works from AC-DC-medium and high frequency AC-DC. The power supply is small in size, energy-saving and efficient. It is a new generation of high-frequency isolated DC power supply and an alternative to SCR thyristor DC power supply.
Product Features
1.Automatic switching of constant voltage, constant current and constant power;
2.Fast dynamic response and stabilization speed;
3.High precision and small output ripple;
4.External battery pack for backup use, with charge and discharge management function;
5.Complete protection functions, overload, overvoltage, overcurrent, overtemperature, undervoltage, short circuit, etc.;

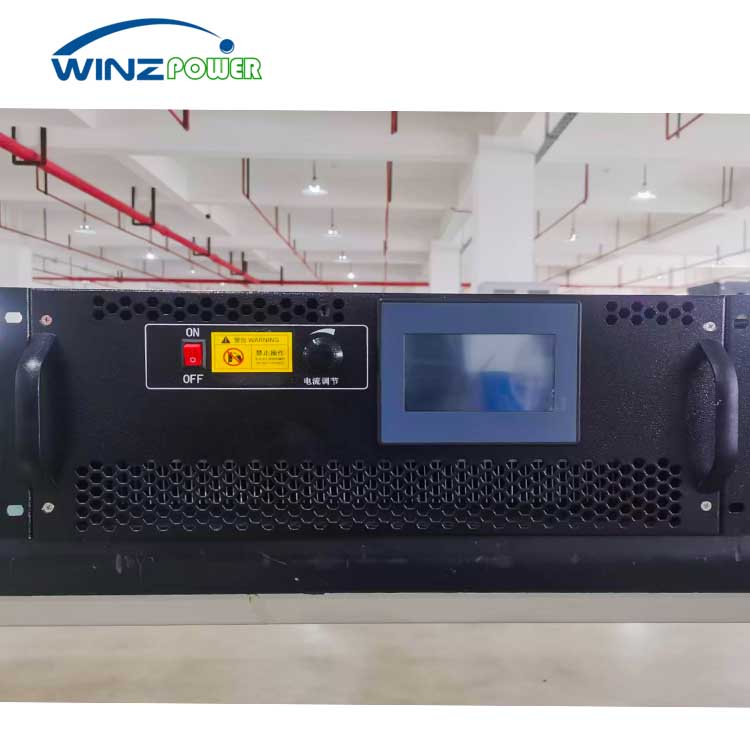

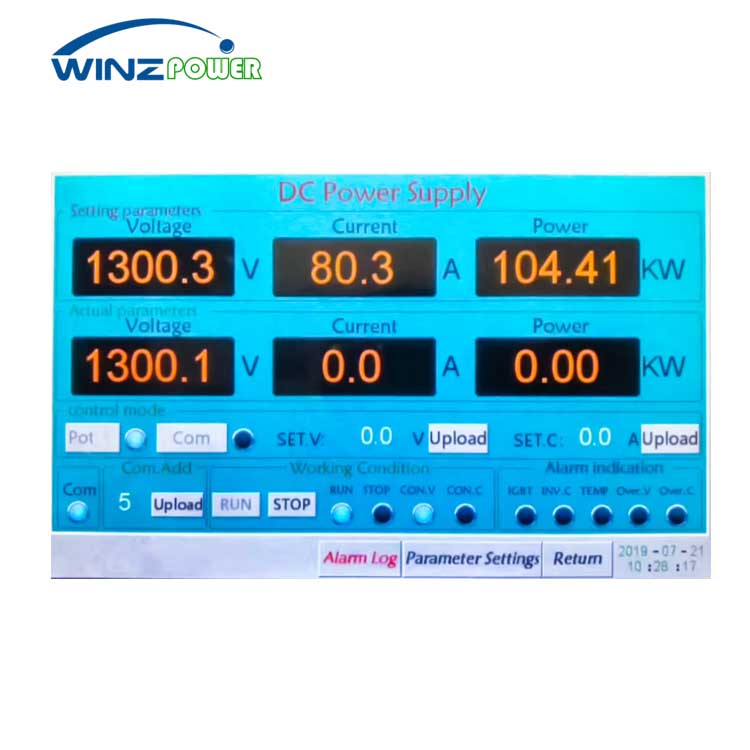

6.LCD parameter display, set value and actual value are displayed at the same time;
7.RS485 communication interface, standard MODBUS-RTU protocol, can be converted to any other protocol.

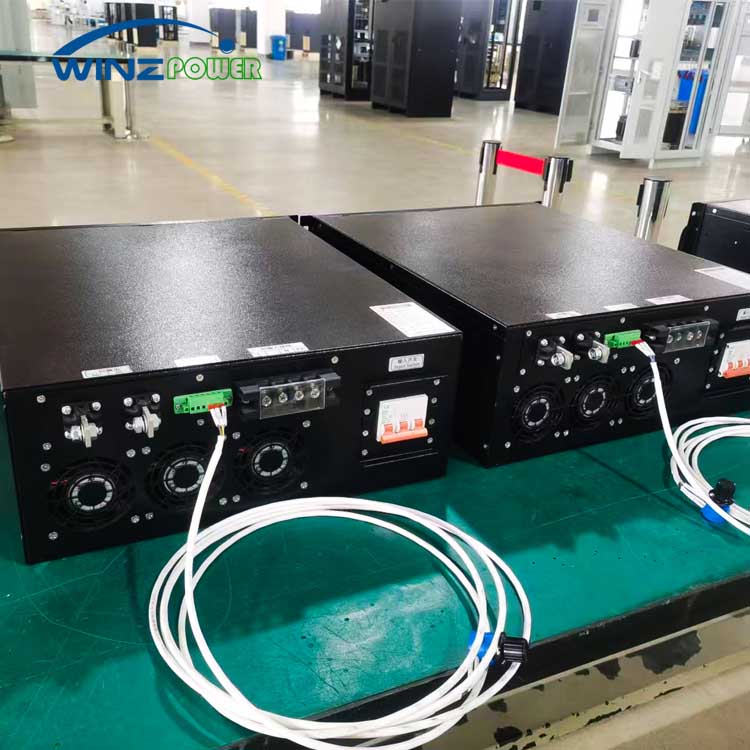

List Of DC Power Supply Technical Parameters
|
Input Technical Parameters |
||
|
Item |
Technical Indicators |
Remarks |
|
Rated voltage(Vac) |
3 phase 380V/400V（any voltage can be customized） |
3 phase 3wires（L1，L2，L3）+ PE 1 phase 2 wires （L,N)+ PE |
|
Input voltage range |
±10%（other range can be customized） |
|
|
Input frequency(Hz) |
40-70HZ |
|
|
12 pulse rectifier transformer |
Phase-shifting transformer |
option, non – standard |
|
Efficency |
>92% |
different load rates may be biased |
|
Power factor |
>0.95 |
|
|
Output Technical Parameters |
||
|
Output DC voltage |
5-5000V |
|
|
Output DC current |
5-50000A |
|
|
Stabilized voltage precision |
≤0.5% |
|
|
Stabilized current precision |
≤0.5% |
|
|
Ripple voltage |
≤1%（Vrms） |
|
|
Controller parameters |
||
|
Main control element |
ARM32 bit processor is used in the main measurement control chip |
|
|
Control frequency |
10-100KHZ |
Determined according to the power and heat dissipation |
|
Control voltage and current acquisition mode |
Acquisition of DC voltage and current isolation sensor |
|
|
Control mode |
Voltage closed loop control mode, current closed loop mode, voltage current double feedback closed loop mode. |
|
|
Communication Interface |
RS232，MODBUS-RTU Protocol |
RS485，TCP/IP，GPRS are selectable |
|
Display parameters |
||
|
Display medium |
128*32（LCD）or 7 inch touch screen |
|
|
Display rated parameters |
output DC voltage, current, power and load percentage; set value voltage, current and power. |
|
|
Display alarm content |
Voltage fault feedback , current fault feedback , IGBT alarm, inversion alarm, output overload, high temperature. |
|
|
Rated parameter display precision |
1.0 grade |
|
|
Voltage parameter resolution |
0.1V or 0.01V |
Customizable higher resolution |
|
Current parameter resolution |
0.1A or 0.01A |
Customizable higher resolution |
|
Protection parameters |
||
|
Protective species |
Voltage fault feedback , current fault feedback , IGBT alarm, inversion alarm, output overload, high temperature. |
|
|
Protection method |
1. Cut off the output ; |
|
|
Physical parameters |
||
|
Cooling Mode |
Natural cooling or forced air cooling or water cooling |
|
|
Protection degree |
Indoor IP21; outdoor IP33 or higher level |
|
Application
DPW series DC power supplies are used in solar energy, electric vehicles, lithium batteries, and components such as circuit breakers, contactors, fuses, and laboratories/certification units. They are suitable for electrical tests that require high voltage or high current, and provide clients with various test simulations and product aging production tests in the early stages of product design and development. Such as: circuit breaker trip test, other low-voltage electrical instantaneous test, current cycle impact test, reliability test, temperature rise test, rated connection, short circuit connection, and action characteristic test.
