How to calculate and select the capacity of an active harmonic filter?

Determining the capacity of an AHF (Active Power Filter) is the most critical step in selection. Insufficient capacity will lead to poor compensation or even equipment overload and damage, while excessive capacity will result in wasted investment. The following are the core steps and methods for determining APF capacity:

Core Principle: The rated capacity of the AHF (usually expressed in amperes) must be greater than or equal to the effective value of the vector sum of the harmonic currents and reactive currents it needs to compensate, with an appropriate margin.

Steps for Determining AHF Capacity

1. Identify the Compensation Target:

Single nonlinear load: such as frequency converters, intermediate frequency furnaces, large UPS, rectifier equipment, etc. This is the ideal situation.

A group of nonlinear loads: such as multiple frequency converters on multiple production lines.

Entire power distribution system/busbar: Compensating for the total harmonic current generated by all loads on this busbar. This is the most common situation.

2. Obtaining Harmonic Current Data:

2.1 Method 1: Actual Measurement (Most Accurate, Highly Recommended)

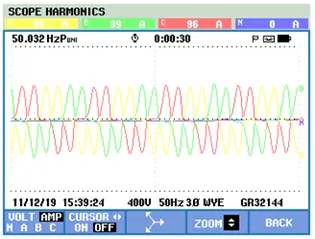

2.11 Use a professional power quality analyzer (e.g., Fluke, Hioki, YOKOGAWA, etc.).

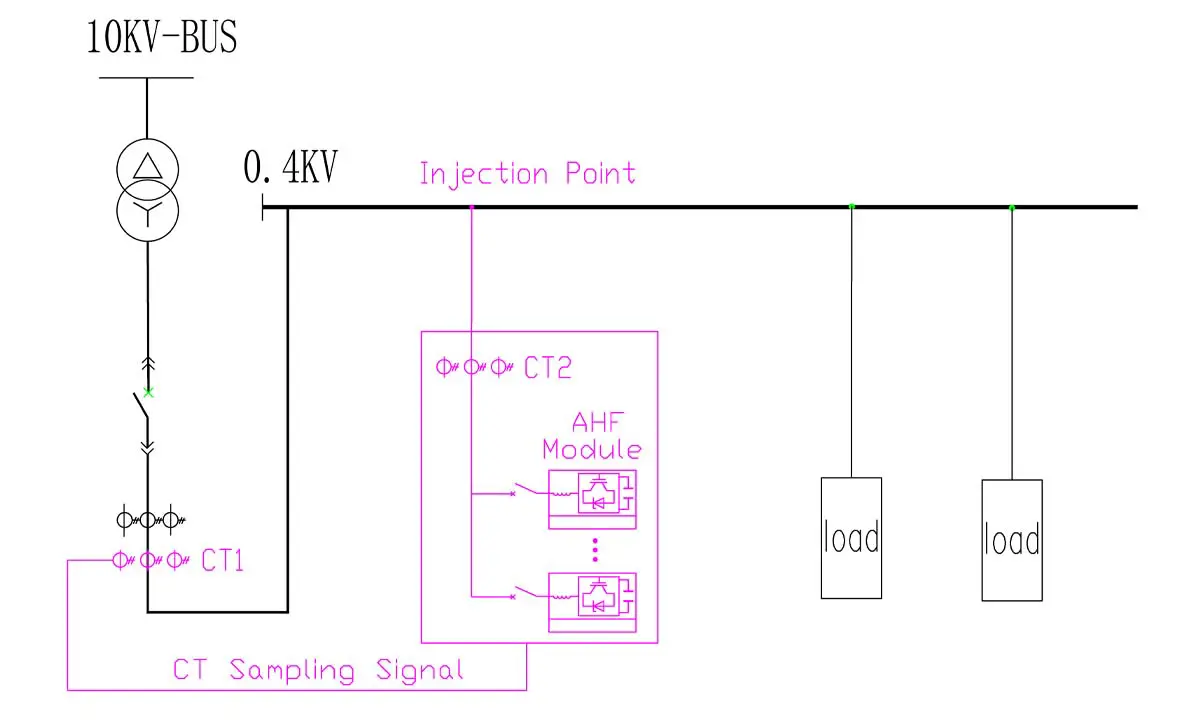

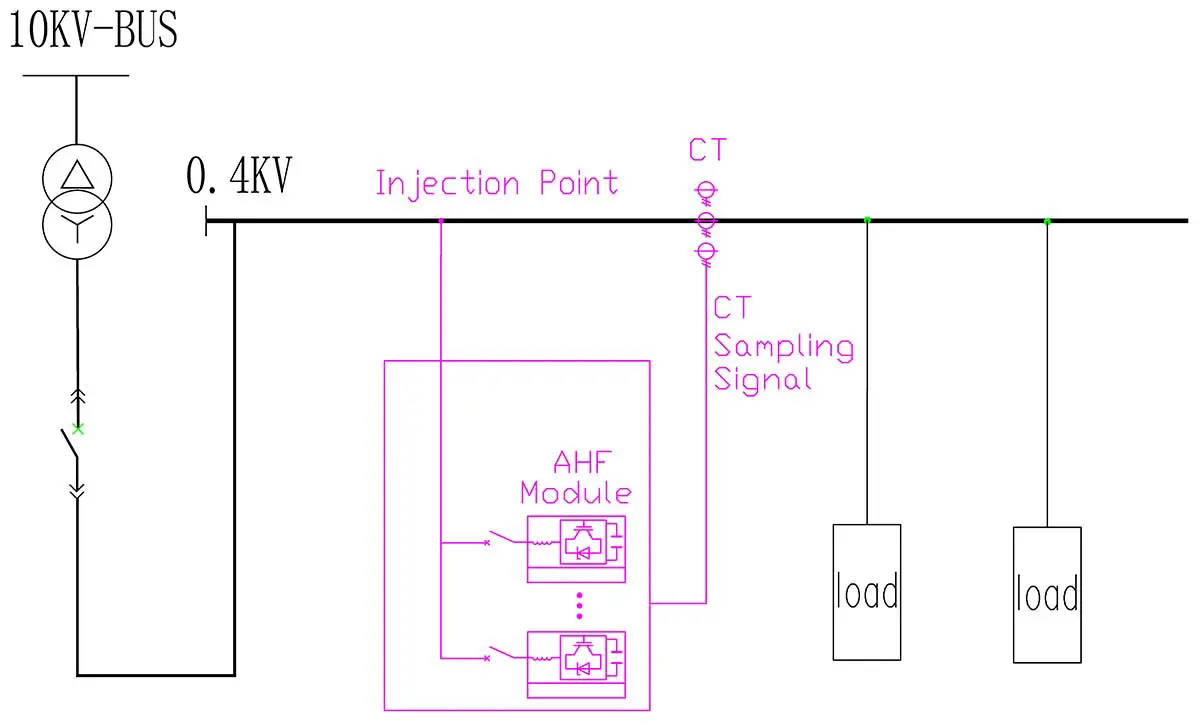

2.12 Perform measurements at the target compensation point (e.g., the input terminal of the nonlinear load, the busbar to be compensated).

2.13 Measure Key Parameters:

Fundamental Current RMS Value: `I₁` (A)

Total Harmonic Distortion Rate: `THDi` (%) – This is the ratio of the total RMS value of the harmonic current to the RMS value of the fundamental current.

Harmonic Current Content: `I₅`, `I₇`, `I₁₁`, `I₁₃`, etc. (A or %) – Understanding the spectrum distribution is helpful for AHF control strategies and capacity design, but `THDi` is mainly used for calculating the total capacity.

Measurement Conditions: Measurements should be performed under the typical maximum harmonic load condition. If the load conditions vary significantly, multiple typical conditions should be measured, and the worst-case scenario (maximum THDi) should be recorded.

Duration: The measurement time should be long enough to cover the load’s operating cycle.

2.2 Method Two: Theoretical Estimation (Lower accuracy, suitable for preliminary selection or when actual measurement is not possible)

2.21 Consult the Equipment Manual: Some equipment (such as frequency converters) manuals will provide typical input current THDi or harmonic spectrum.

2.22. Empirical Formulas/Typical Values:
6-Pulse Rectifier (without reactor): `THDi` ≈ 30%-50%
6-Pulse Rectifier (with DC reactor): `THDi` ≈ 30%-40%
6-Pulse Rectifier (with AC reactor): `THDi` ≈ 30%-35%
12-Pulse Rectifier: `THDi` ≈ 10%-15%

2.23. UPS: `THDi` ≈ 25%-40%

2.24. High-Frequency Switching Power Supply: `THDi` may be very high (>80%), but the actual effective current value may not be large.

2.25. Fundamental Current Estimation: `I₁≈ S / (√3 * U * PF)`. Where `S` is the apparent power of the load (kVA), `U` is the line voltage (V), and `PF` is the load power factor (0.7-0.9 can be used for estimation). Note that the power factor of nonlinear loads is usually lower.

3. Calculate the RMS value of the harmonic current to be compensated:

Example:
The measured input current of a frequency converter I₁ = 100A, THDi = 40%. Then Ih = 100A * (40 / 100) = 40A. This means that the AHF needs to provide at least 40A of harmonic current compensation capability.

4. Consider Reactive Power Compensation Needs:

If the AHF needs to compensate for both harmonics and reactive power (to improve the power factor), this requirement must be included in the calculation.

Determine the effective value of the reactive current to be compensated, `Iq` (A):

`Iq = I₁ * sin(φ)`, where `φ` is the phase angle by which the load current lags behind the voltage (`cosφ` is the power factor).

5. Considering Margins:

5.1 Load Fluctuation Margin: The load may change, and harmonic levels may momentarily exceed the measured value. It is recommended to add a margin of 15%-30%.

5.2 System Expansion Margin: Consider potential future load increases. It is recommended to add a margin of 10%-20% (determined according to the plan).

5.3 AHF Self-Capacity Margin: AHFs typically have a certain short-term overload capacity (e.g., 150% overload for 1 minute), but the rated capacity should be sufficient for continuous operation.

5.4. Margin Application: Multiply the current `Ih` or `Ic` calculated in step 3 or 4 by the margin factor `K` (e.g., 1.2 – 1.5).

`I_ahf = Ih * K` (compensates harmonics only)
`I_ahf = Ic * K` (compensates both harmonics and reactive power)

6. Final Determination of AHF Rated Current:

Based on the calculated result of `I_AHF`, select an AHF model with a nominal rated current equal to or slightly greater than `I_ahf`.

Note:

The capacity of an AHF is usually expressed in amperes (e.g., 50A, 100A, 300A).

Sometimes, its apparent power capacity is expressed in kilovolt-amperes (`S_ahf = √3 * U * I_AHF`). However, current is the most direct basis for selection.

The voltage level must match the system voltage (e.g., 380V, 400V, 480V, 690V, etc.).

Key Considerations Summary:

Harmonic current is crucial: Accurately measuring or estimating the total effective value of harmonic current (`Ih`) at the target compensation point is fundamental.

Reactive power compensation requirements: If reactive power compensation is required simultaneously, the reactive current (`Iq`) must be calculated and vector-synthesized with the harmonic current (`Ic`).

Sufficient margin is essential: Load fluctuations, system expansion, and the characteristics of the AHF itself all necessitate sufficient margin. It’s better to err on the side of larger margins than smaller ones, but excessive waste should be avoided.

Actual measurement is preferred: Theoretical estimations have significant errors; actual power quality measurements are strongly recommended, especially under complex loads or variable operating conditions.

System voltage: The rated voltage of the AHF must match the system voltage at the installation point.

Ambient temperature: The capacity of the AHF is typically calibrated at a standard ambient temperature (e.g., 40°C). If the installation ambient temperature is higher, derating or selecting a larger capacity model may need to be considered. AHF Topology: Parallel AHF is the most common, and its capacity is determined as described above. Other types (such as series and hybrid) have similar capacity determination principles, but the emphasis may differ.

Manufacturer Consultation: Inform the AHF supplier of your measurement data, load conditions, and requirements; they will usually provide professional selection advice and calculations.

Simple Formula Summary (Harmonic Compensation Only)

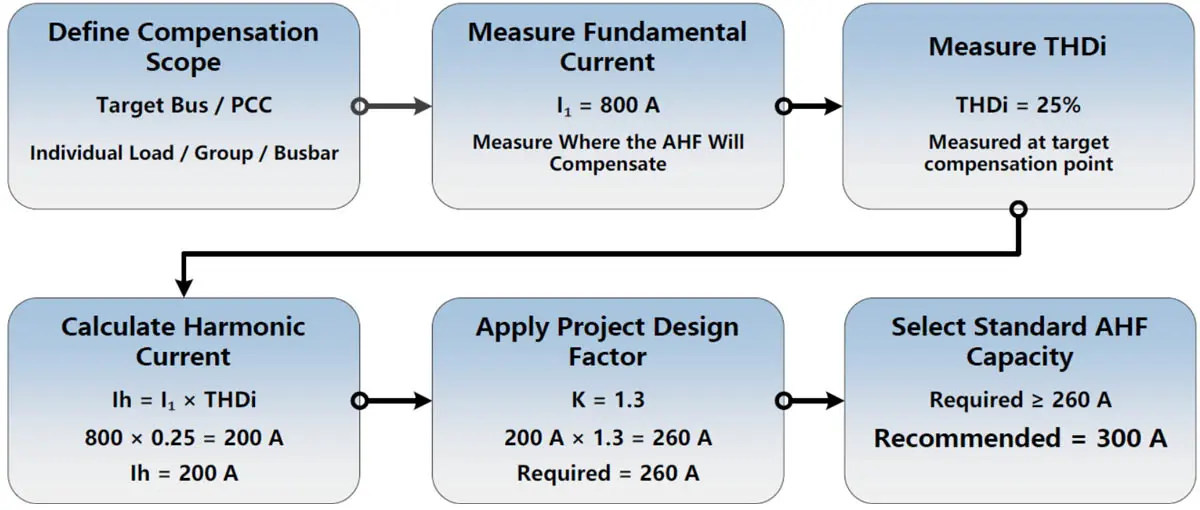

`AHF Rated Current (I_ahf) ≥ [Fundamental Current RMS Value (I₁) × Total Harmonic Distortion (THDi%) / 100] × (1 + Margin Factor)`

Example: For a 380V distribution busbar, under the measured maximum operating condition:

`I₁ = 800A` `THDi = 25%`

Only harmonic compensation is needed; the target power factor is acceptable. Considering a 20% load fluctuation margin and a 10% extended margin, the total margin factor `K = 1.3`
Calculation: `Ih = 800A * (25 / 100) = 200A`
`I_ahf = 200A * 1.3 = 260A`

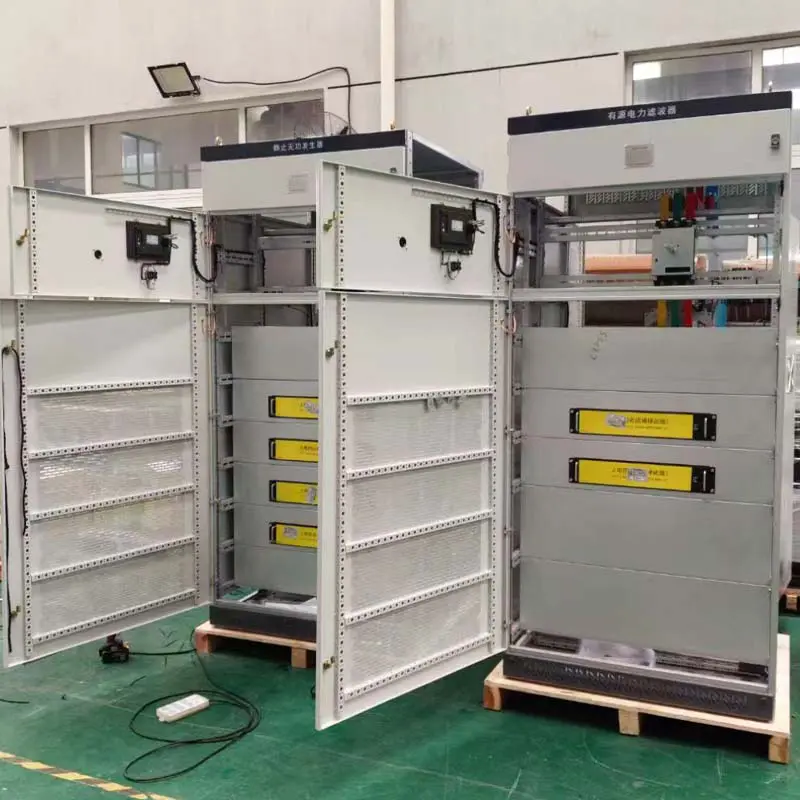

Selection: Choose a 380V parallel AHF with a rated compensation current of not less than 260A (e.g., a 300A model).

By following the above steps and methods, and carefully considering the margins in conjunction with the actual situation, the capacity of the AHF can be scientifically and rationally determined, ensuring its effective, reliable, and economical operation.
