Gabatarwar Samfur
Ƙasashe da yankuna masu zuwa ne suka fi amfani da grid 480V, 60Hz mai kashi uku:
Amurka, Kanada, Mexico, Brazil, Costa Rica, da Guyana.
Ana amfani da mai daidaita wutar lantarki na 480V, 60Hz don daidaita tsarin wutar 480V/60Hz.
Wannan mai daidaita wutar lantarki mai kashi uku na 1000KVA yana da tsarin daidaita kashi uku da daidaita wutar ta atomatik.
Ƙarfin mai daidaita wutar ya dace da kewayon transformer 630K zuwa 1250K don daidaita wutar gaba ɗaya.
Saboda girman ƙarfin mai daidaita wutar, ana amfani da akwatuna uku masu zaman kansu (L1, L2, da L3).
Wannan kuma nau’in mai daidaita wutar AC ne na servo.
Ma’aunin Fasaha
| SHIGA | |
| Nau’i | SBW-F-1000KVA[480V] Nau’in daidaita wutar kashi uku ta atomatik |
| Ƙarfin Wutar (KVA) | 1000KVA |
| Kewayon Wutar (VAC) | 384V~576V |
| Mitar (Hz) | 50/60Hz |
| Matakai | Matakai 3 Wayoyi 5 |
| Wutar (A) | 1202A |
| FITA | |
| Ƙarfin Wutar (KVA) | 1000KVA |
| Ƙarfin Wutar (A) | 1202A |
| Wutar Fita (V) | 480VAC |
| Daidaiton Fita | 480VAC±1～5% (Ana iya daidaitawa) Saitin Tsoho ±2% |
| Mitar | 50Hz/60Hz |
| Inganci | 98.8% |
| Raƙuman Ruwa (ƙarin THD) | Idan aka kwatanta da raƙuman ruwa na shiga, ƙarin THD na fita bai wuce 0.1% ba |
| Ƙarfin ɗaukar Nauyi | A cikin nauyi 1.5 sau tsawon lokaci bai gaza mintuna 5 ba |
| Lokacin Daidaitawa | Matsakaicin wutar shiga dangane da canjin kewayon 10%, lokacin daidaitawa ƙasa da daƙiƙa 1 |
| Aikin Tsaro | |
| Juriya na Keɓewa | ≥2MΩ |
| Juriya na Wutar | 2500V |
| Aikin Kariya | |
| Ƙarfin Wutar Fiye da Kima | Idan wutar kashi ta fita ta wuce 10%, ana yanke fitar |
| Ƙarancin Wutar | Idan wutar kashi ta fita ta kasa 10%, ana yanke fitar |
| Lalacewar Kashi | Gano rashin kashi |
| Nauyi Fiye da Kima | Lokacin da tsarin ya ɗauki nauyi fiye da kima, ana yanke fitar, kuma ana iya saita jinkirin lokaci |
| Wutar Fiye da Kima | Lokacin da tsarin ya sami wutar fiye da kima, ana yanke fitar. Kariya ta MCCB |
| Gajeren Keway | Lokacin da tsarin ya sami gajeren keway, ana yanke fitar. Kariya ta MCCB |
| Hanyar Wucewa | Hanyar Wucewa ta Hannu |
| Jeri-Kashi | Relay na jerin kashi |
| Nuni | |
| Kafofin Nuni | Panel Nuni Multifunction LCD segment code KO Touchscreen 7” |
| Wutar |
Wutar shiga da fita, lissafin ƙimar RMS na gaskiya nuni LCD
|
| Wutar | Wutar Shiga, lissafin ƙimar RMS na gaskiya nuni LCD |
| Matsayin Lalacewa | Nuni matsayin lalacewa OV UV OL da sauransu |
| Sauran fasaloli | |
| Sadarwa | RS485 Modbus RTU |
| Zazzabi na Aiki | -15℃+55℃ |
| Danshi Mai Dangantaka | 10%-90%(20℃±5℃) |
| Tsayi | ＜2000m |
| Matsayin Hayaniya (dB) | ＜55dB |
Aikace-aikace
An ƙera wannan samfur don daidaita wutar a cikin yanayin samar da wutar 480V kuma ya dace da yanayin masana’antu da kasuwanci mai kashi uku. Ƙarfinsa na 1000KVA ana amfani da shi da farko don daidaita wutar gaba ɗaya a asibitoci, kayan aikin sinadarai masu ƙarfi, wuraren aiki masu zaman kansu, da ɗakunan rarraba wutar masana’antu. Yana inganta ingancin samar da wutar lantarki sosai kuma yana tabbatar da aiki lafiya da kwanciyar hankali na kayan aiki daban-daban.

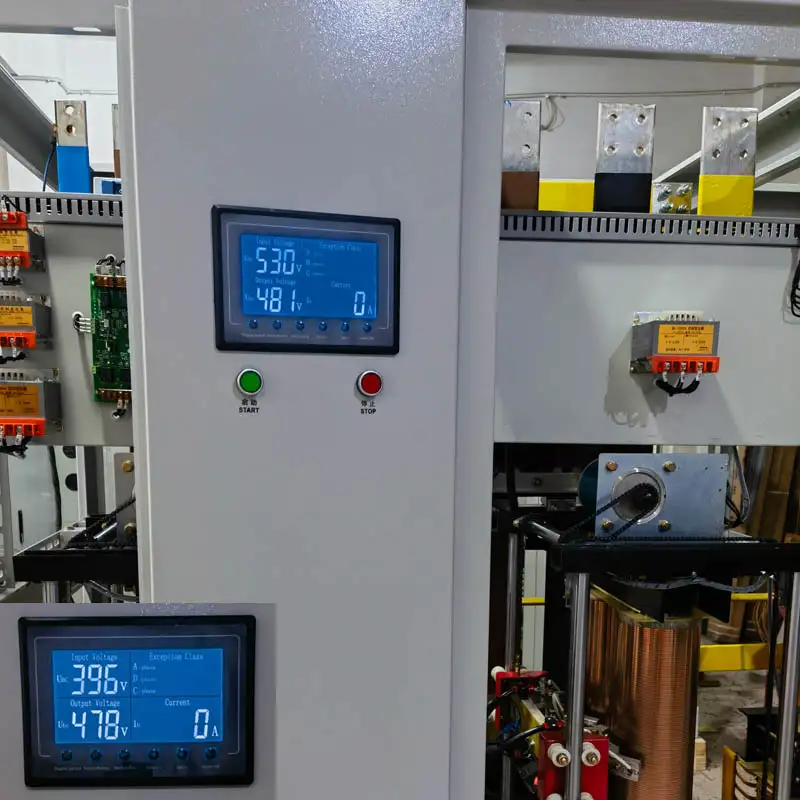

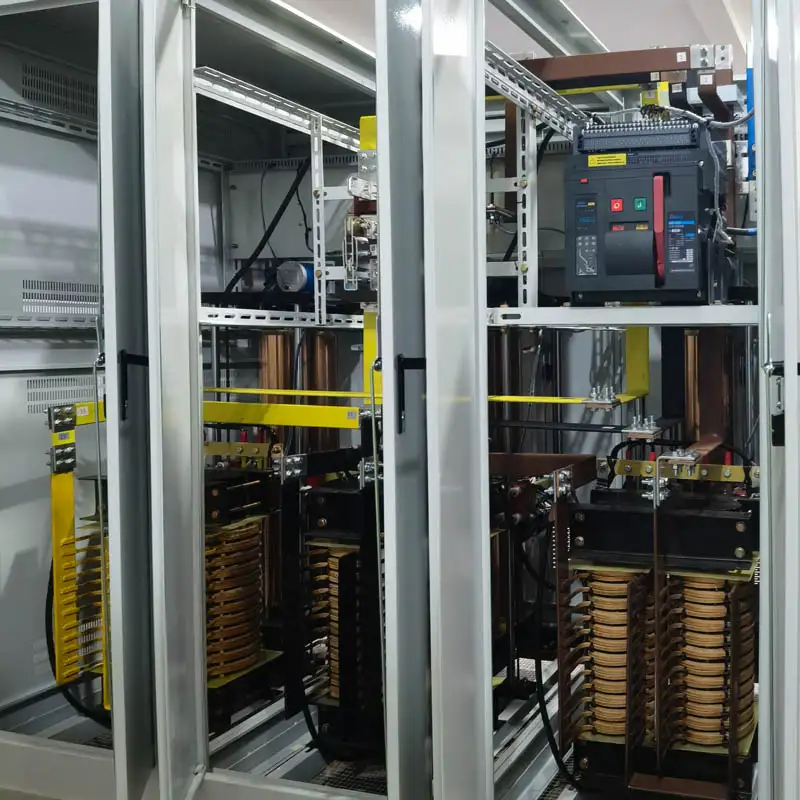

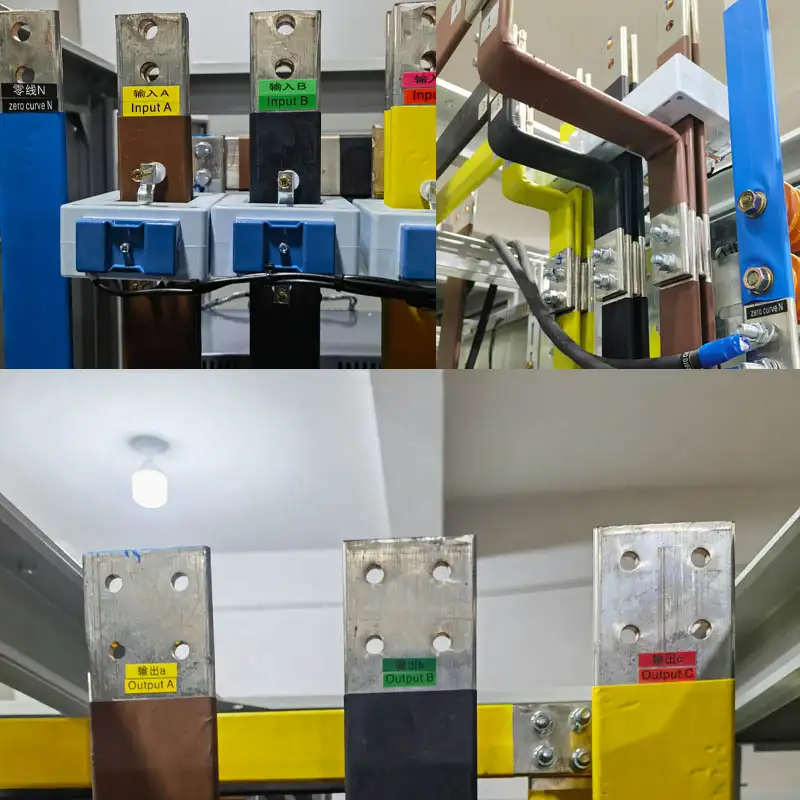

Hotunan Samfur
